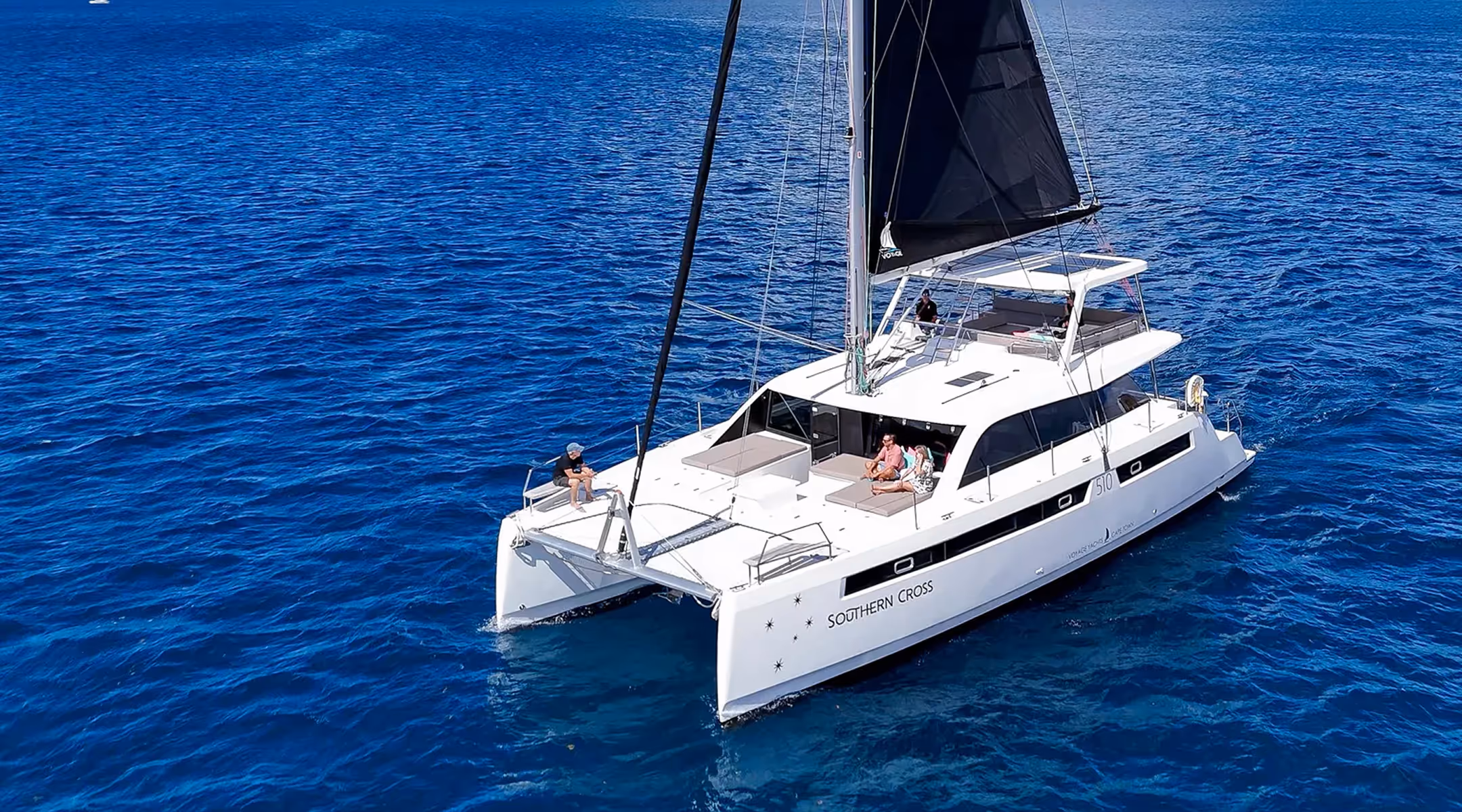

Voyage 510

Experience the elegance and performance of the Voyage 510 catamaran, designed for luxury adventures.

Starting at

$2,450,000

Length

51 ft

Type

Catamaran

Year

2025

Performance

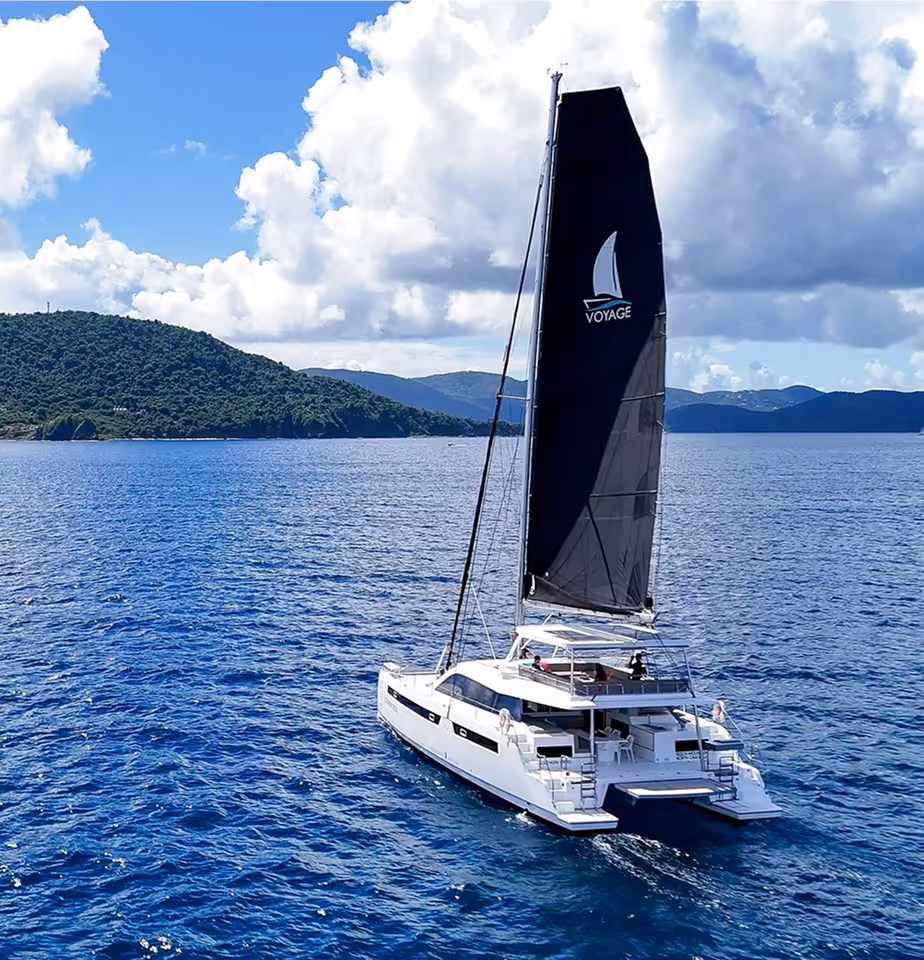

Unleash the Power of the Voyage 510

The Voyage 510 is engineered for exceptional performance on the water. Experience unparalleled sailing capabilities that redefine luxury and adventure.

Speed & Agility

Designed for swift navigation, the Voyage 510 excels in both speed and maneuverability.

Stability & Comfort

Enjoy a smooth sailing experience with superior stability and luxurious comfort on board.

Video Tour

Take a Virtual Tour

Experience every detail of this magnificent catamaran through our comprehensive video walkthrough.

VOYAGE 510 Standard Specifications

Full Specifications

Dimensions

Length Overall (LOA) 51' 10" / 15.8 m

Beam 26' 11" / 8.2 m

Draft 4' 11" / 1.5 m

Displacement 42,990 lbs / 19,500 kg

Engines

Engine Brand Yanmar

Engine Model 4JH57

Horsepower 57 HP (each)

Engine Hours 850

Tankage

Fuel Tanks 238 gal / 900 L

Water Tanks 238 gal / 900 L

Holding Tank 185 gal / 700 L

Accommodations

Cabins 4

Heads (Bathrooms) 4

Sleeps 8-10

Sailing

Main Sail 1044 sqft / 97 m²

Genoa 592 sqft / 55 m²

Cruising Speed 9 knots

Plumbing

Automatic electric bilge pumps with high-level alarms: 4

Black water systems and holding tanks: 2

Pressurized hot and cold freshwater system with 2 pumps

Hot and cold deck shower, Port Transom

Electrics

24V/12V DC supply

Victron Shore power charger

50A/240V shore power socket

Battery isolator switches

BLUE SEA circuit breaker panel for DC

Victron 24V house bank 600-amp hour (3.6kw)

Composite Construction

High quality polyester resin

Multi layers of Quadriaxial glass fabric

GRP hand lay-up construction combined with Infusion Technology

Bulkheads tabbed to hull, deck and coachroof

Forward watertight compartments with horizontal bulkheads

Underwater body coated in anti-osmotic Epoxy

Rigging

Sparcraft 7/8th fractional rig

Anodized aluminum mast, boom, cross beam

Mast supported by single spreaders, intermediate and cap shrouds

Double purchase main halyard

Color coded sheets and control lines

Mainsheet system

Lazy jacks

Luff pendants

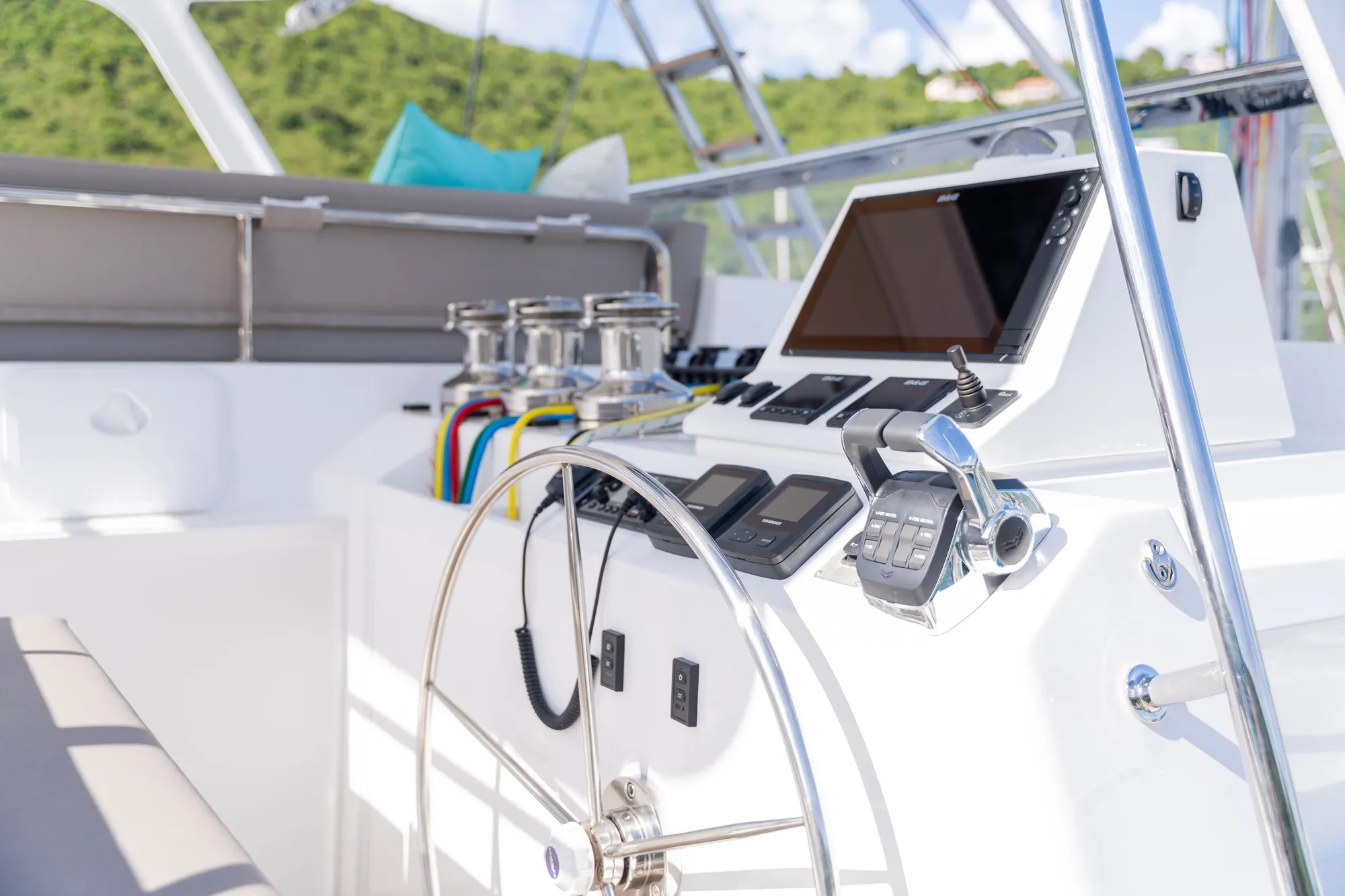

All lines lead to the helm station for ease of control

Deck flood light

Navigation lights and VHF antenna

Deck Equipment

ANDERSEN 52ST Manual winches x 3

Stainless Steel mooring cleats x10

HARKEN Black Magic blocks

HARKEN tracks and cars

SPINLOCK Jammers & organizers

Mooring Gear & Ground Tackle

Lofrans 2300W / 24V windlass

Anchor bridle with thimbles for anchoring

Anchor chain 12 mm, 80 m galvanized and 60 m nylon anchor rode

DELTA anchor, 50 kg

Two anchor rollers, one with tipper

Experience the Voyage 510

Discover the unparalleled luxury and performance of the Voyage 510. Schedule a viewing today to immerse yourself in its exquisite design and craftsmanship.

Personalize

Begin Your Voyage to Ownership

At Voyage Yachts, we are dedicated to making your catamaran dreams a reality. Our bespoke customization service allows you to tailor every aspect of your yacht, ensuring it perfectly aligns with your vision. From interior layouts to exterior finishes, our team is here to guide you through a seamless and personalized design experience.

Your stress-free purchase process

Our experts are on hand to guide you.

Upfront Costs and Flexible Payment Plans

We offer transparent details on pricing and payment options.

Eager to Set Sail?

Reach out today to set your course.

Contact us
