Secret Oasis
VOYAGE 580
Length
57' 6" / 17.53 m
Beam
30' 6" / 9.3 m
Cabins / Heads
7 / 6
Year of Build
TBC
Winner of the Cruising World ‘Best Sailing Catamaran’ Award, 2002.

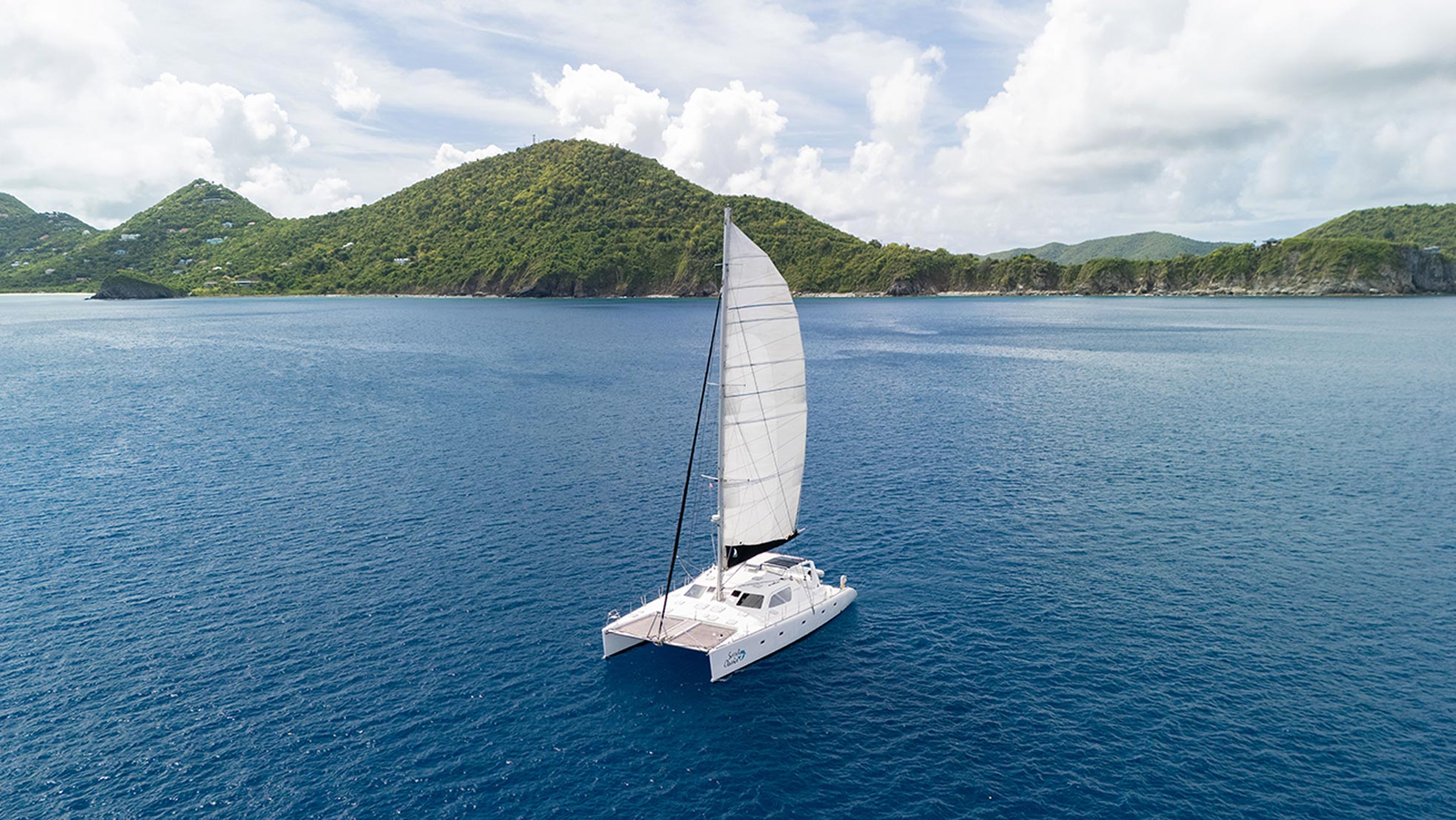

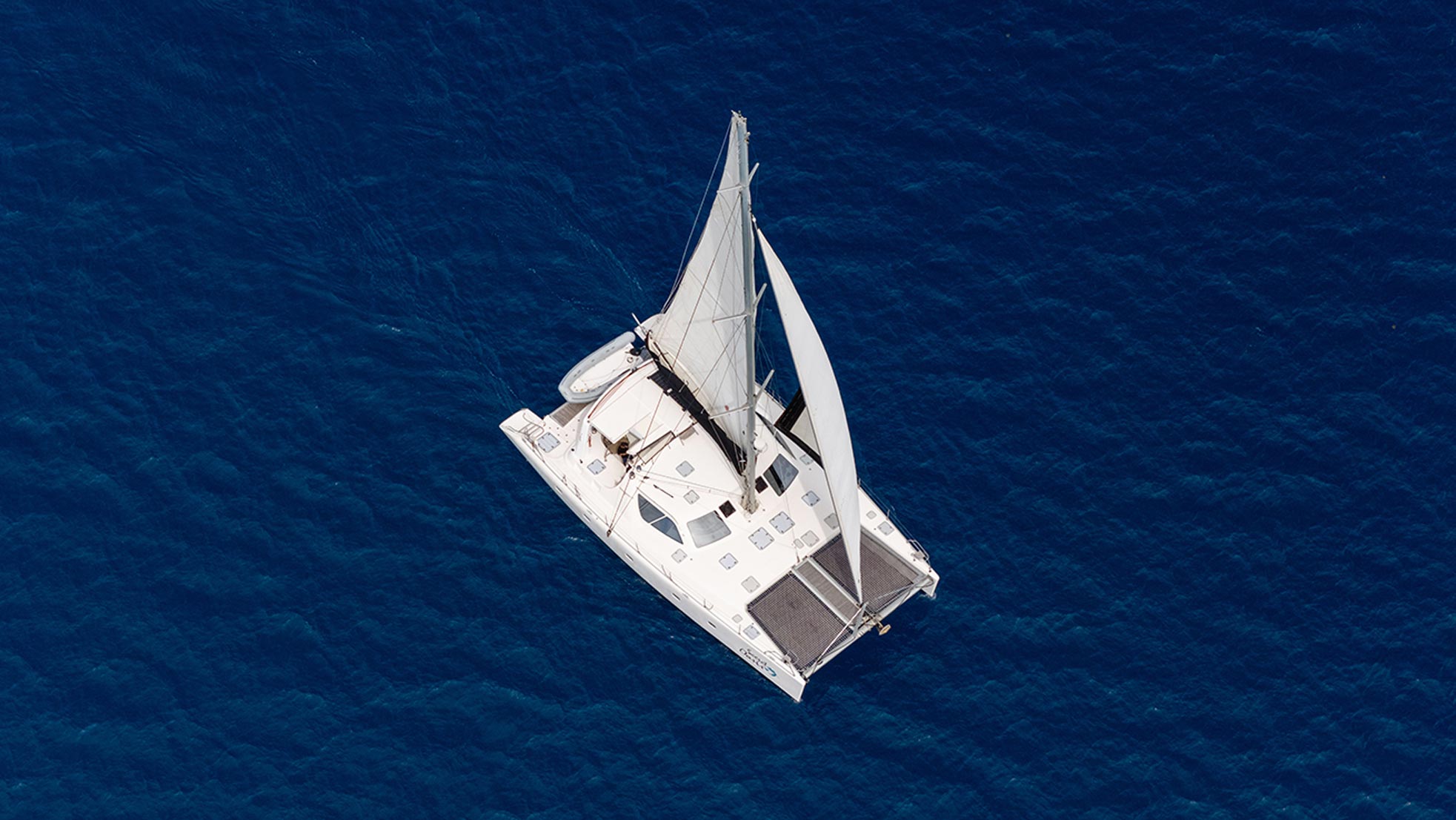

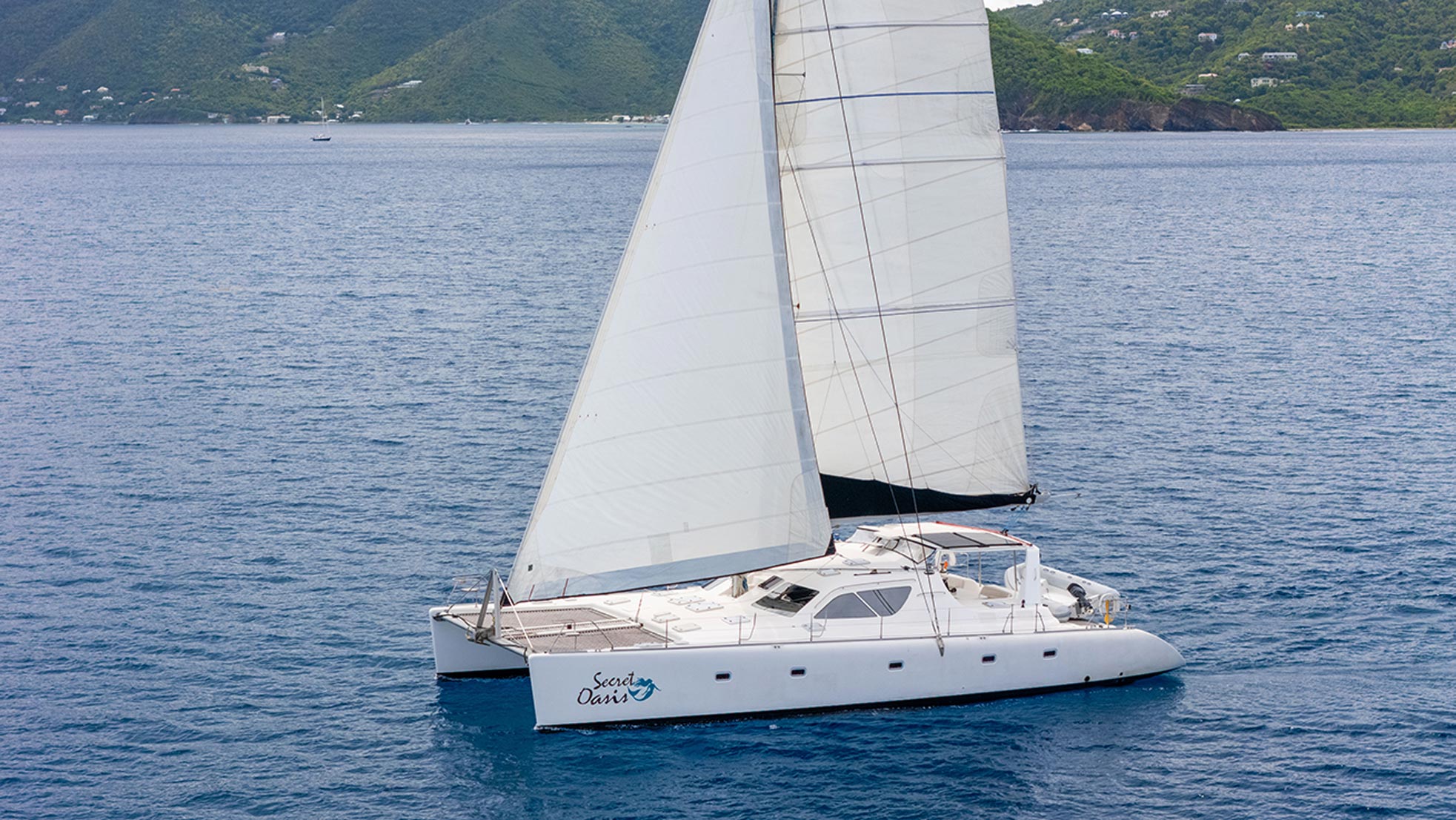

This impressive 58-foot VOYAGE 580 catamaran offers an extraordinary blend of size, comfort, and offshore capability. Built in 2006, she showcases a spacious design that maximizes both performance and livability, making her ideal for long-range cruising or relaxed coastal adventures. With her generous length and well-engineered layout, this yacht provides the stability, style, and seaworthiness expected from a vessel designed for true ocean-going travel.
Secret Oasis - VOYAGE 580
Full Specifications
Dimensions
Length Overall (LOA)
57' 6" / 17.53 m
Beam
30' 6" / 9.3 m
Draft
5' 6" / 1.68 m
Mainsail
1,135 sqft / 105.4 m²
Headsail
867 sqft / 80.5 m²
Waterline Length
54' 9" / 16.7 m
Displacement
39,600 lbs / 17,960 kg
Guest Cabins
7
Guest Heads
6
Engines
Engine Brand
Yanmar
Engine Model
4JH4TE
Horsepower
75 HP (each)
Engine Type
Inboard
Engine Hours
3126 & 1340
Fuel Type
Diesel
Propeller Type
3 Blade
Propeller Material
Alloy
Tankage
Fuel Tanks
210 gal / 795 L
Water Tanks
440 gal / 1665 L
Holding Tank
100 gal / 380 L
Composite Construction
Hull Material
Fiberglass
Hull Shape
Catamaran
Keel Type
Fin Keel
Sails
Harken Battcar system for Mainsail
Mainsail Stowage Pack with lazy jacks
PROFURL Genoa Furler
Fully battened main with large roach, 3 reef points, cross cut Dacron
Furling Genoa with foam luff and UV cover, high modulus cross cut Dacron
Hardware and setup for bow sprit and additional furling headsail or spinnaker

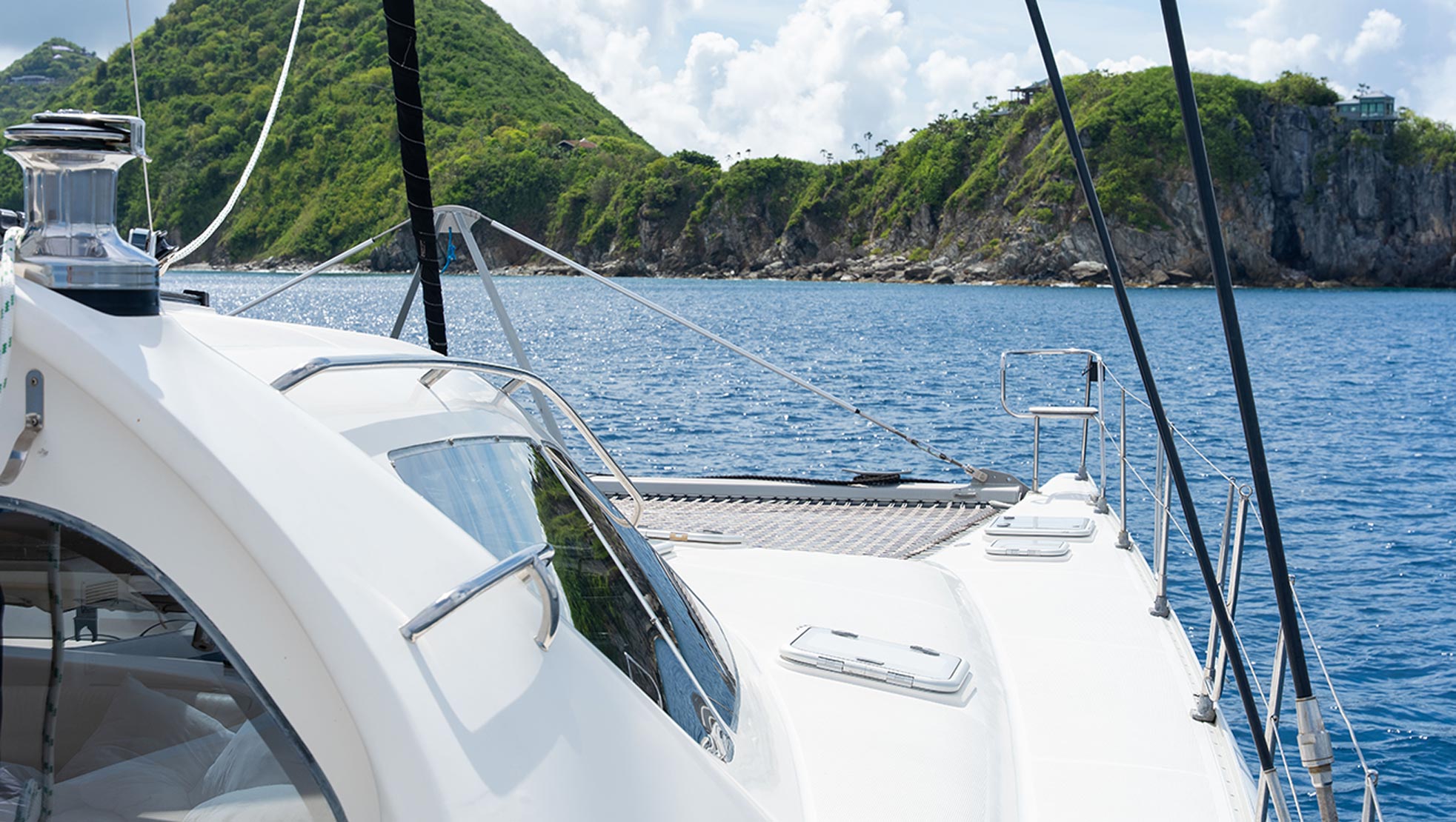

Deck Fittings
Bow pulpits with teak bow seats
Double guard wires with gates
Grab rails on coach roof
Stanchions and stanchion bases
Stern push-pits with brackets for life ring buoys and overboard lights
Stainless Steel swim ladders port and starboard
Hull Deck & Bulkheads
Additional reinforced areas for rudders, keels, and deck fittings
Antifouling over epoxy based osmosis barrier
Carbon Fiber with Epoxy resin for structural reinforcing
Closed cell PVC foam core, vacuum bonded
Forward water tight compartments with horizontal bulkheads
Low aspect reinforced keels
Skeg supported rudders
Marine ply and balsa core on critical structure for added strength and stiffness

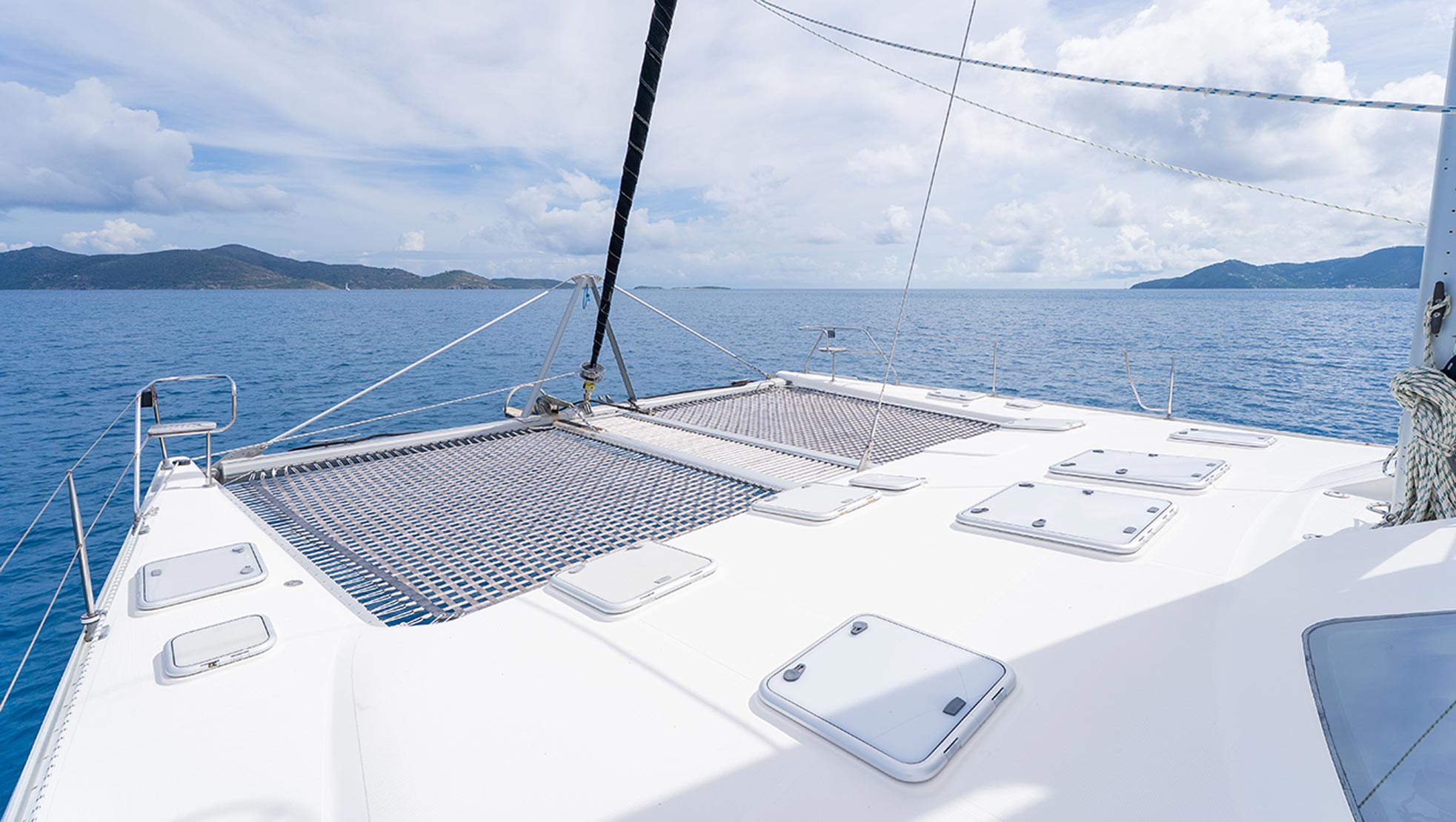

Deck Equipment
10 x aluminum mooring cleats
1 x ANDERSEN 52ST electric primary winch on coachroof, starboard
2 x ANDERSEN 58ST electric primary winches on coachroof, port and starboard
1 x ANDERSEN 58ST electric Secondary winch in cockpit, starboard
1 x Electric windlass
Tracks, cars, jammers, blocks
Teak walkway between trampolines
Webbing trampolines
Toe rail with stanchion bases
Rigging
7/8th fractional rig
Anchor chain lead internally through compression post
Anodized aluminum mast, boom, cross beam and double compression posts
Color coded sheets and control lines
Double purchase main halyard
Dedicated dinghy halyard
2 x luff pendants
Navigation lights and VHF antenna
Telescopic boom derrick for hauling dinghy on to dive platform
Mooring Gear & Ground Tackle
Anchor bridle with thimbles for anchoring
Anchor chain lead internally through compression post
Anchor chain, 60m stainless steel
DELTA anchor, 60 kg
Two anchor rollers, one with tipper
Secondary anchor: FORTRESS anchor F37 with 10' chain & 50m nylon anchor rode
Hatches & Windows
Anodised aluminium framed sliding door with safety glass
30 x LEWMAR Hatches
10 x LEWMAR Port lights
12 x OCEAN AIR Sky hatch screens
8 x Reflective laminated safety glass windows
Ventilation hatch with teak grid in galley

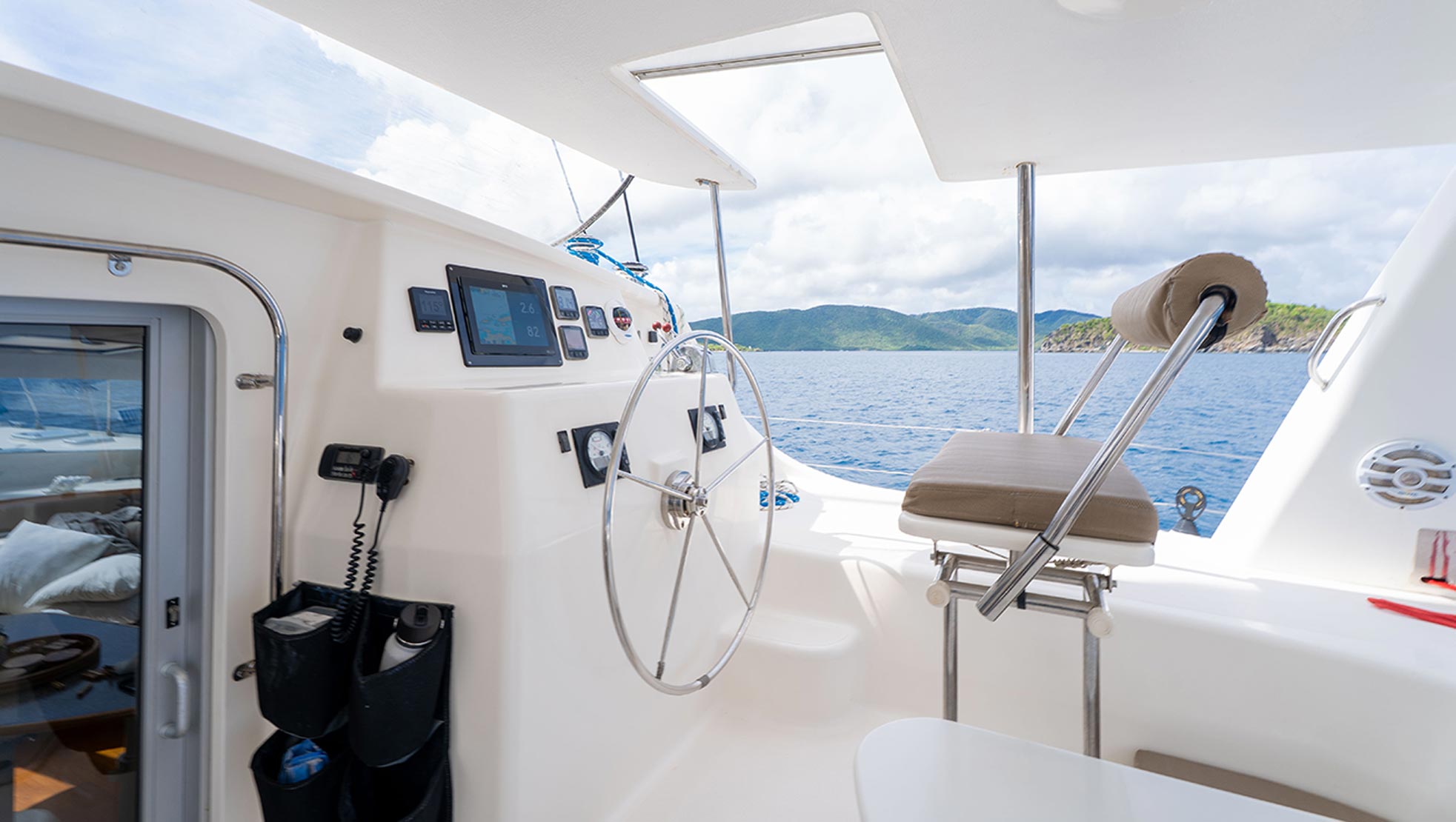

Instrumentation at Helm Station
Compass
ICOM M-304 VHF Radio with antenna on mast
Raymarine Tridata & Wind
RAYMARINE ST6002 Autopilot with 24V Whitlock Rotary Drive
RAYMARINE Radar/GPS/Chart Plotter, AXIOM 12 PLUS multifunction display
Electrics
5Kw Battery/Inverter Charger System with multi view display
Solar Panels: 2 × 375W
12V and 110V outlets in engine rooms
50A/110V shore power cable socket
2 x engine start batteries 24V @ 600AH
Interior AC outlets — Standard 110v: 10
Battery isolator switches
Lighting
Ceiling lights with dimmers
5 x Cockpit lights
Deck light
Boom light
Spreader lights
Underwater lights
Mast top and lower navigation lights
Plumbing
2 x Black water systems with holding tanks, and electric pump outs
4 x Automatic electric bilge pumps with alarms
2 x Manual bilge pumps
2 × 25 liter water heaters: calorifiers
6 x Grey water systems
Water maker: 110V with remote start panel, charcoal filter, fresh water flush
Water gauges
Deck wash system with fresh and salt water faucet in aft locker and chain locker
Dinghy
14' AB 14VS rigid bottom inflatable dinghy with 15hp YAMAHA outboard

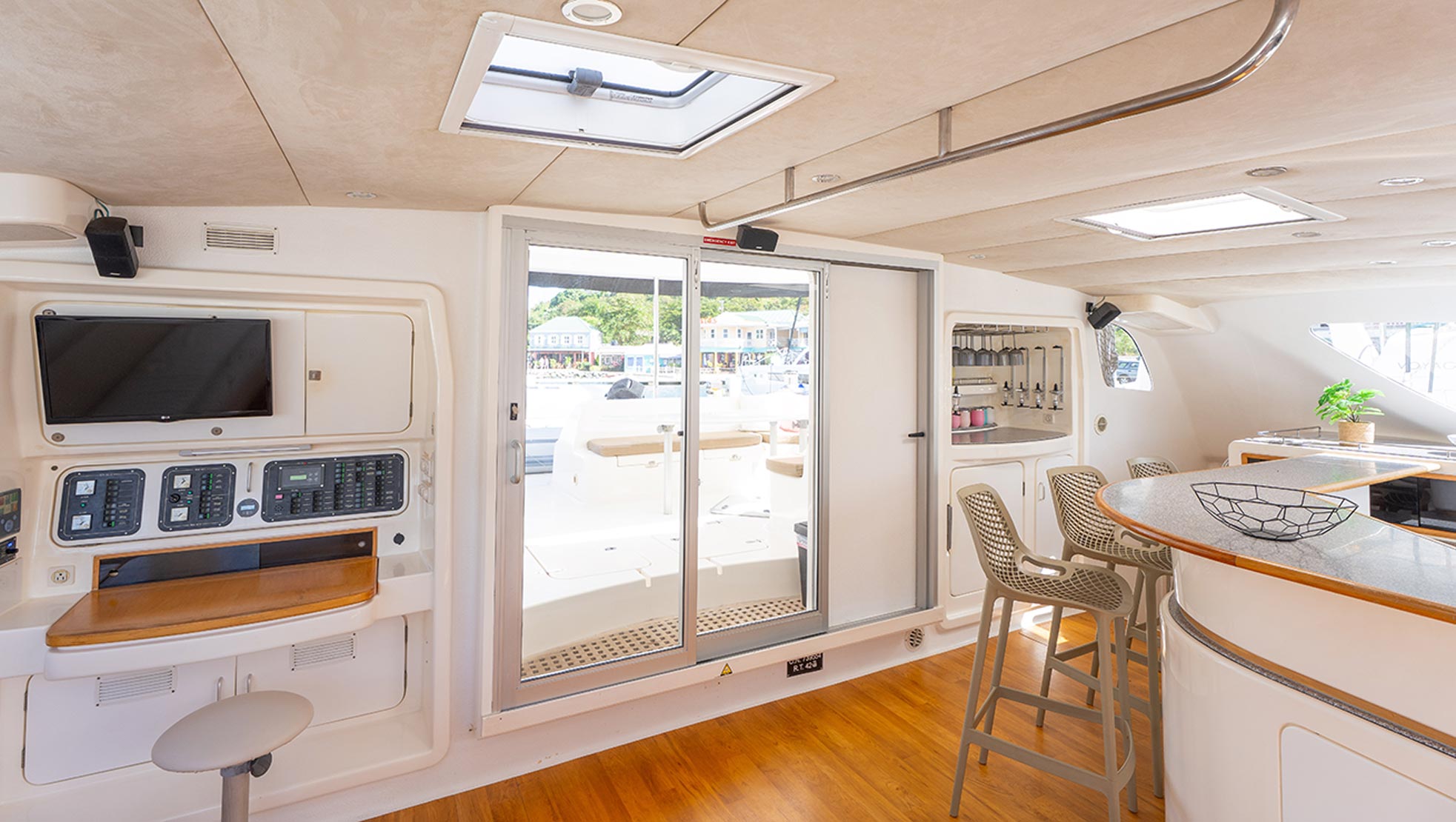

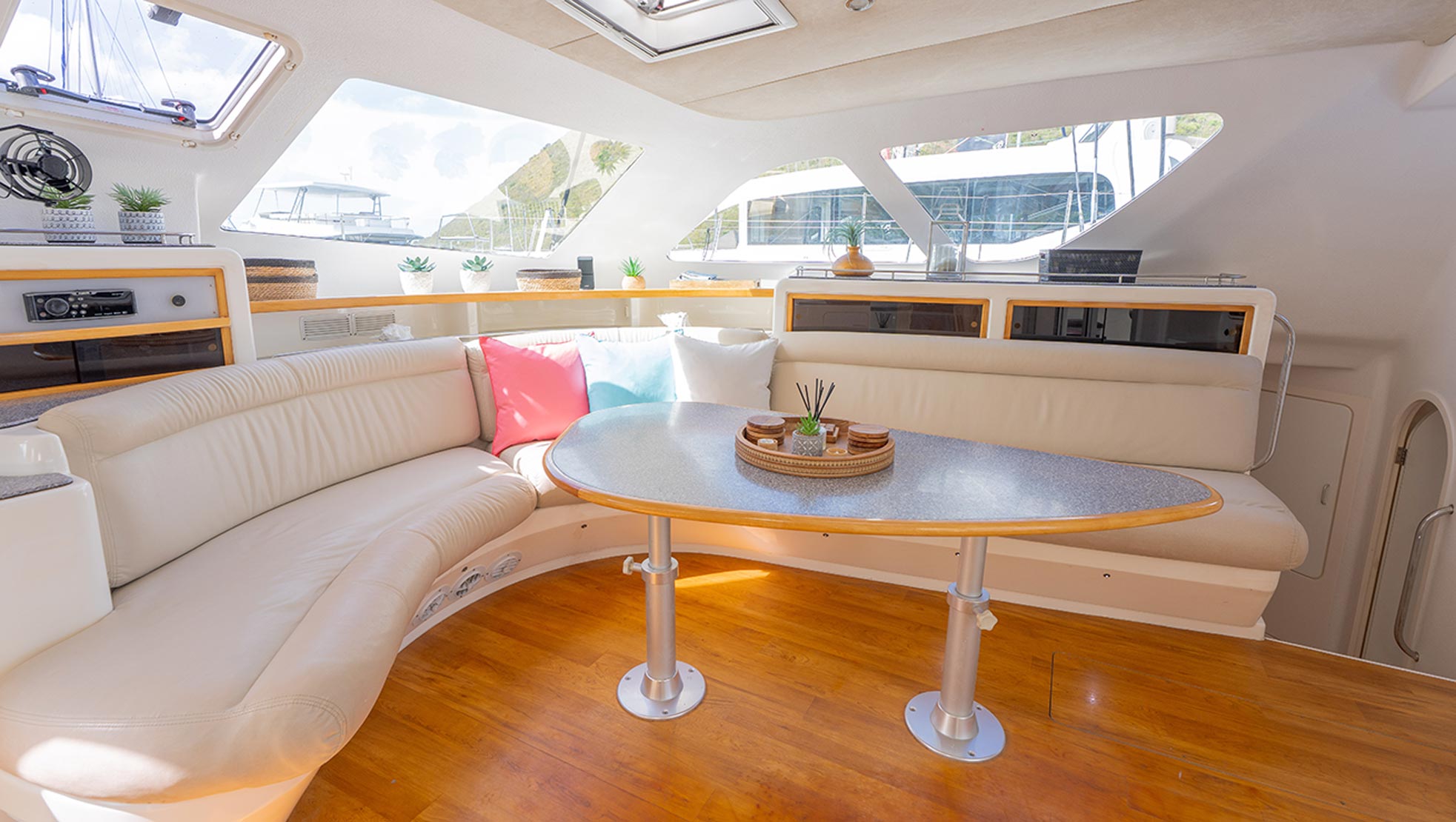

Main Saloon
Acrylic work surfaces
Faux leather upholstered settee
ALCANTARA ultra suede upholstered ceiling liner

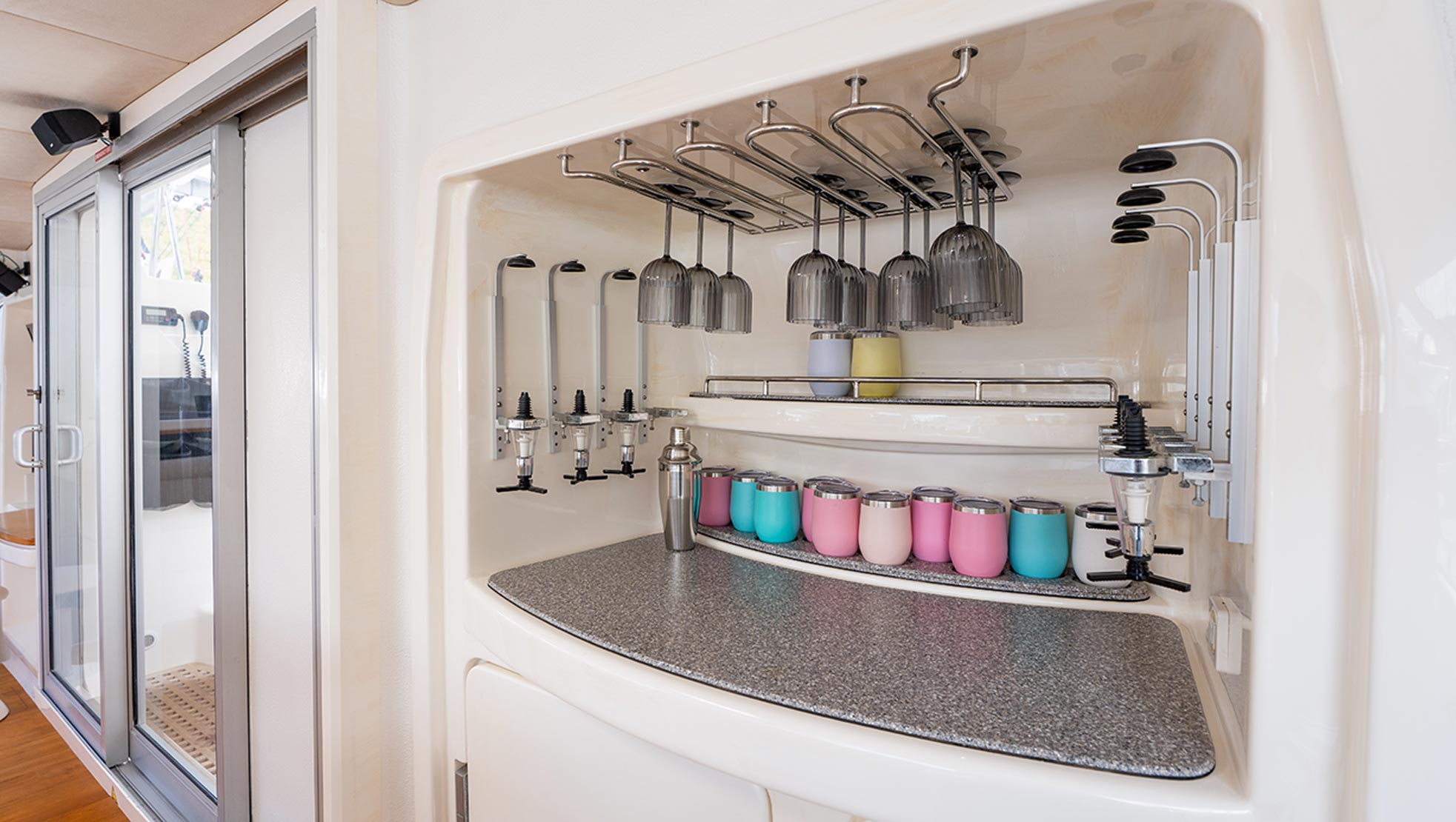

Bar with seating for 3
Coffee table
Teak synthetic flooring in hard wearing vinyl
Sound System, with multi zone speakers in saloon/galley, cockpit, and on mast
Foredeck Crew Cabin
Fully air conditioned
Split mattress
2 x cabin fans
Cabin and reading lights
Storage locker

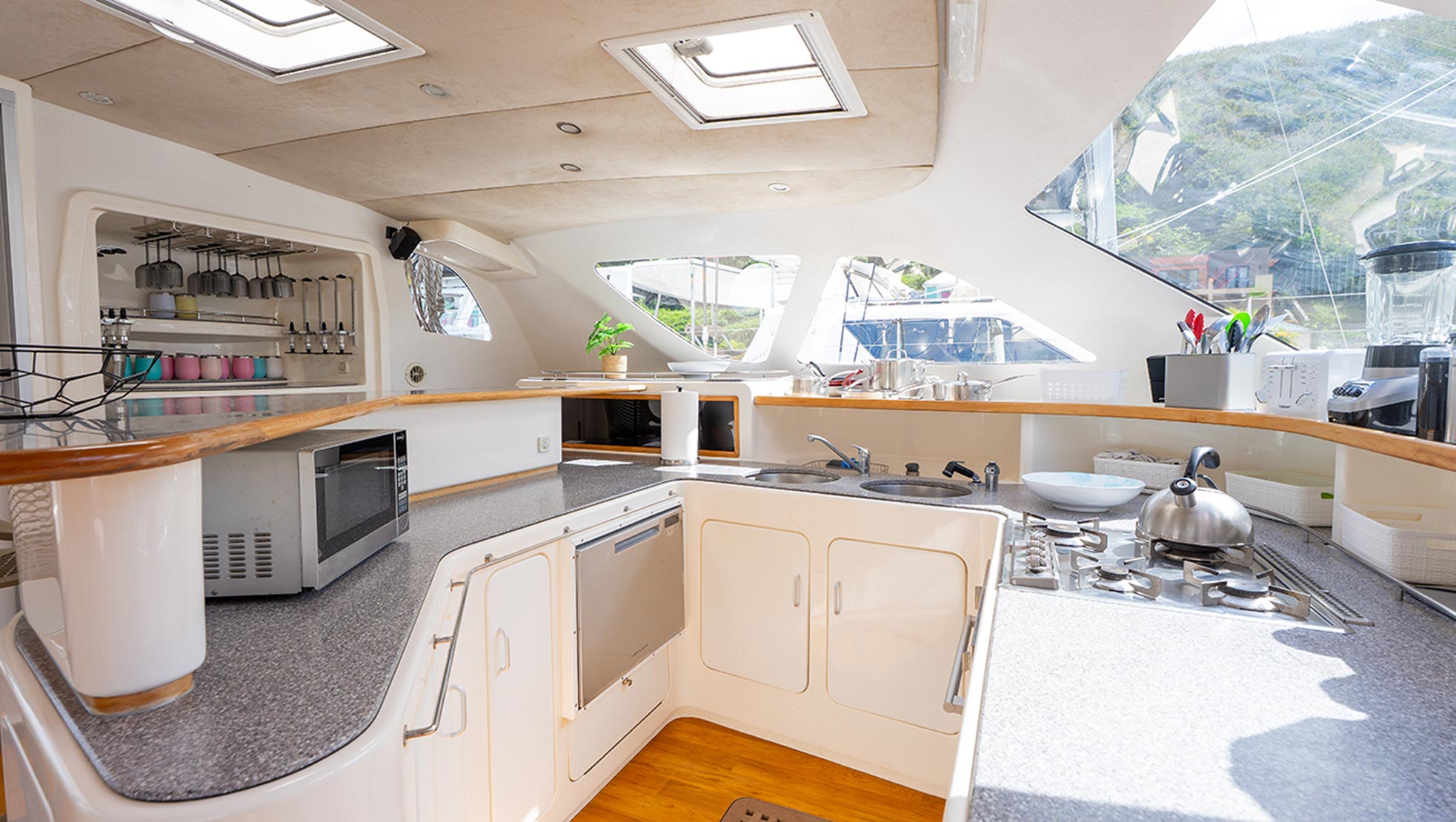

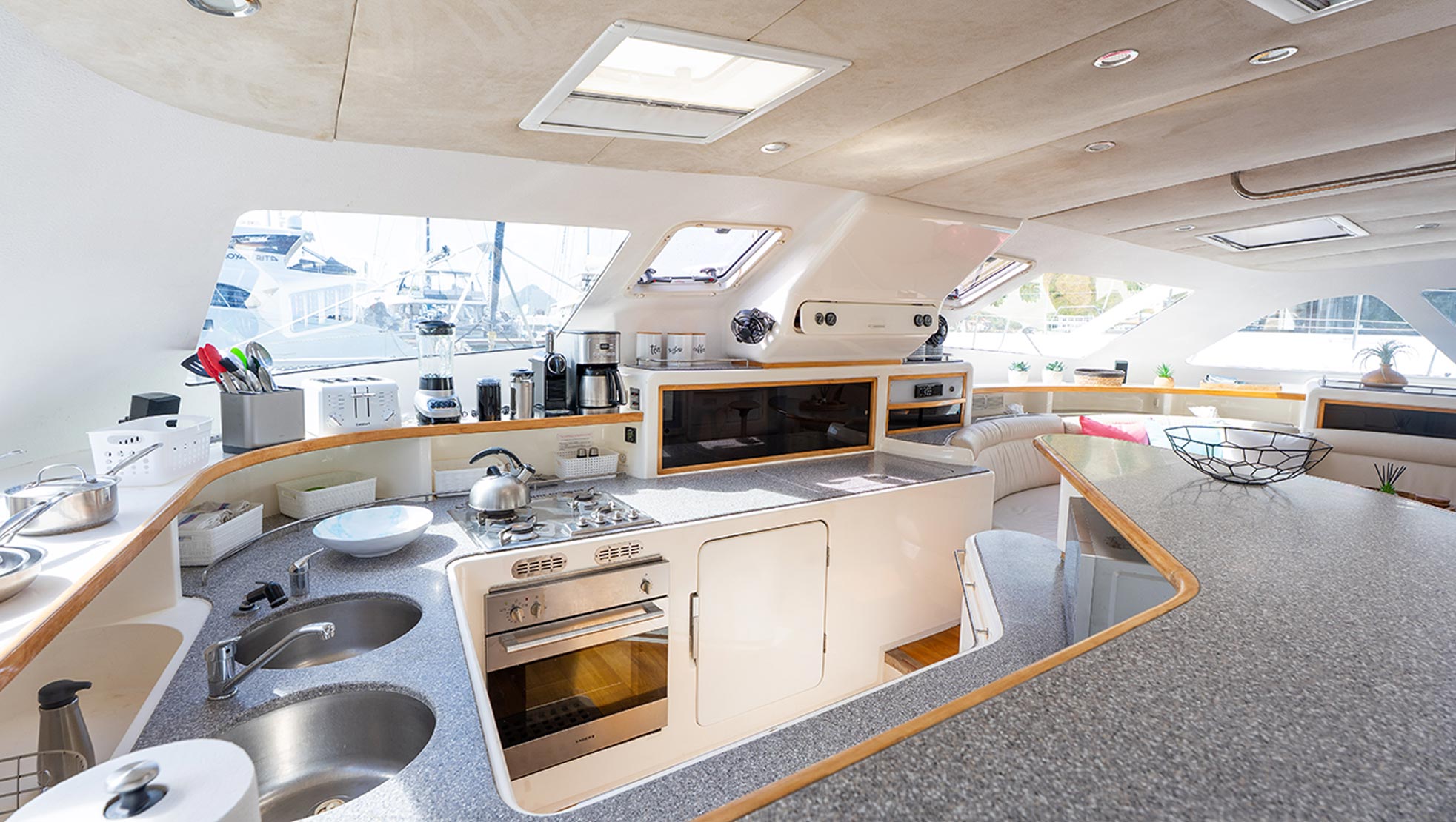

Galley
Acrylic work surfaces with stainless steel rails and fiddles
Flooring in hard wearing vinyl
ALCANTARA headliner
Microwave oven
Propane gas oven and 4 burner gas hob
Gas detection system
Stainless steel double sink
Front opening refrigerator, 24V air cooled
Top opening freezer, 24V air cooled
Drawer dishwasher

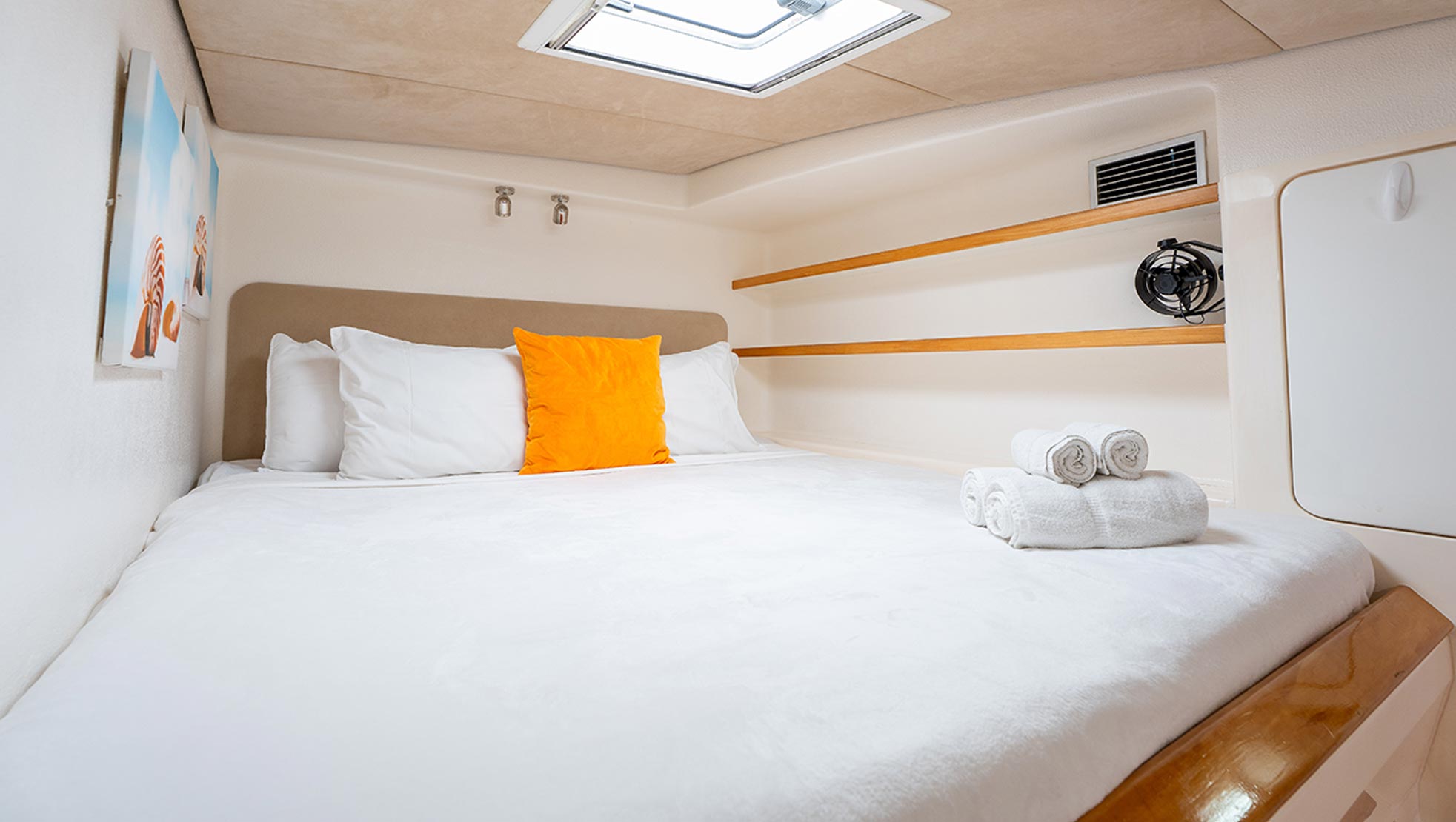

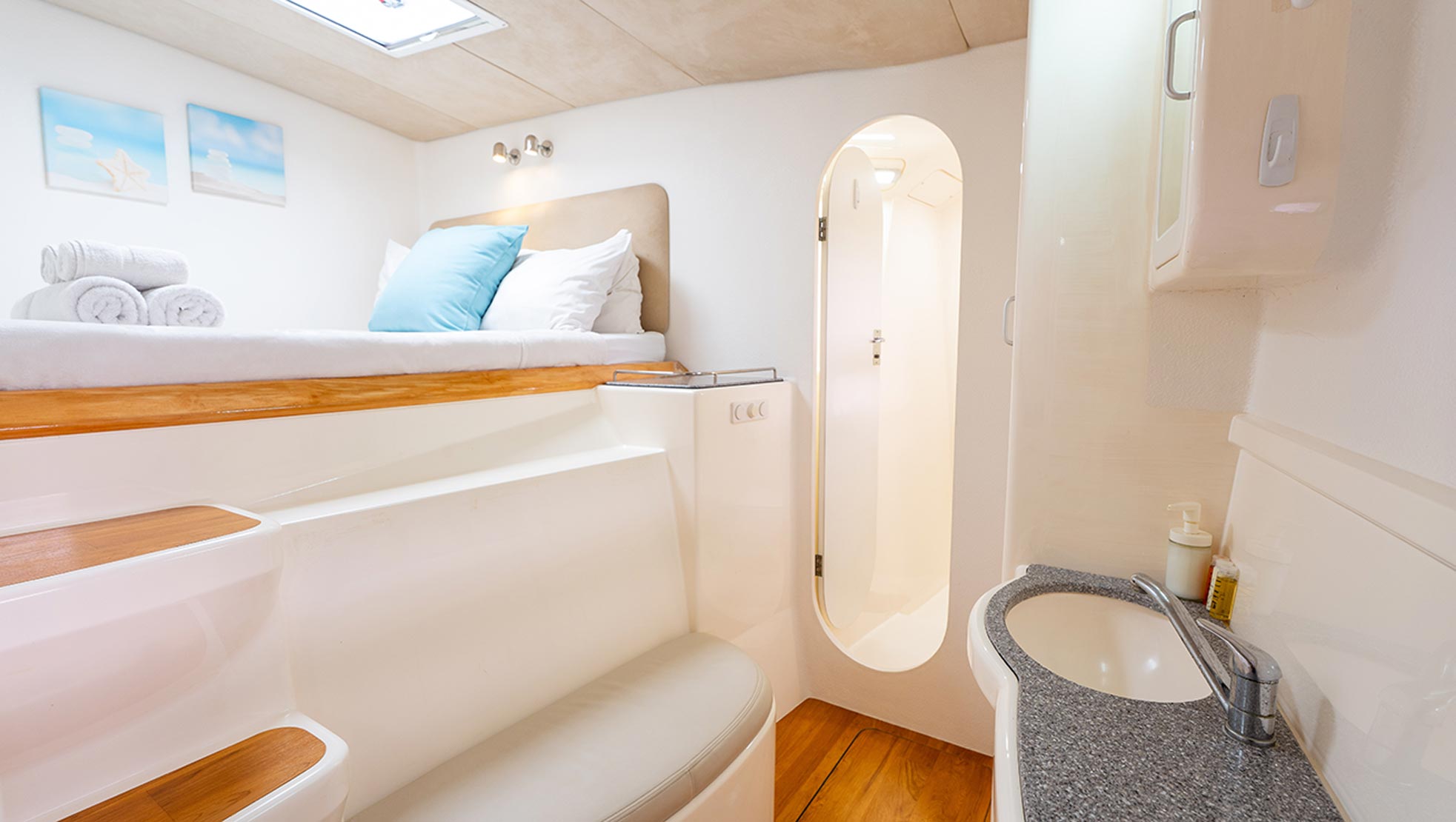

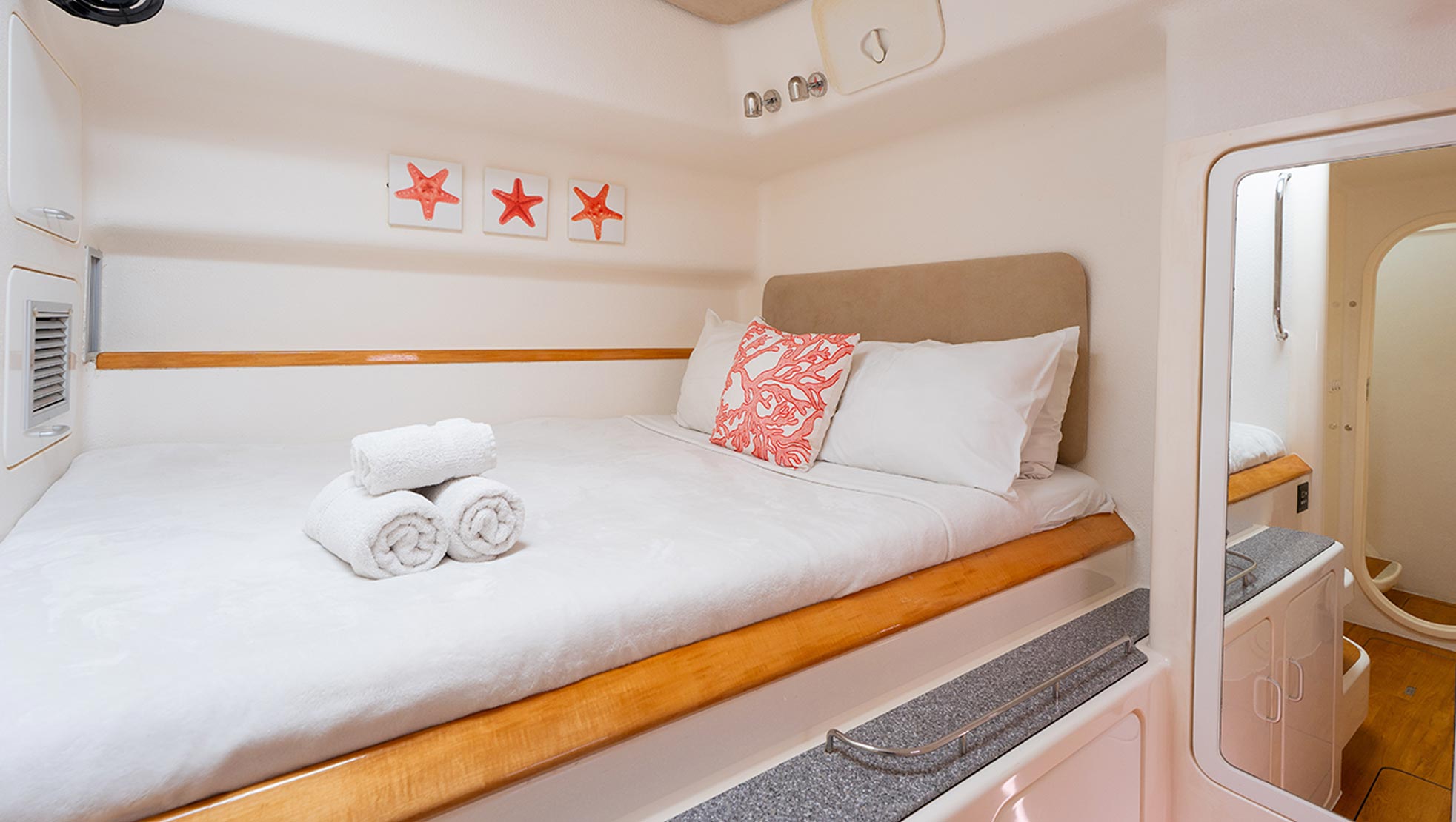

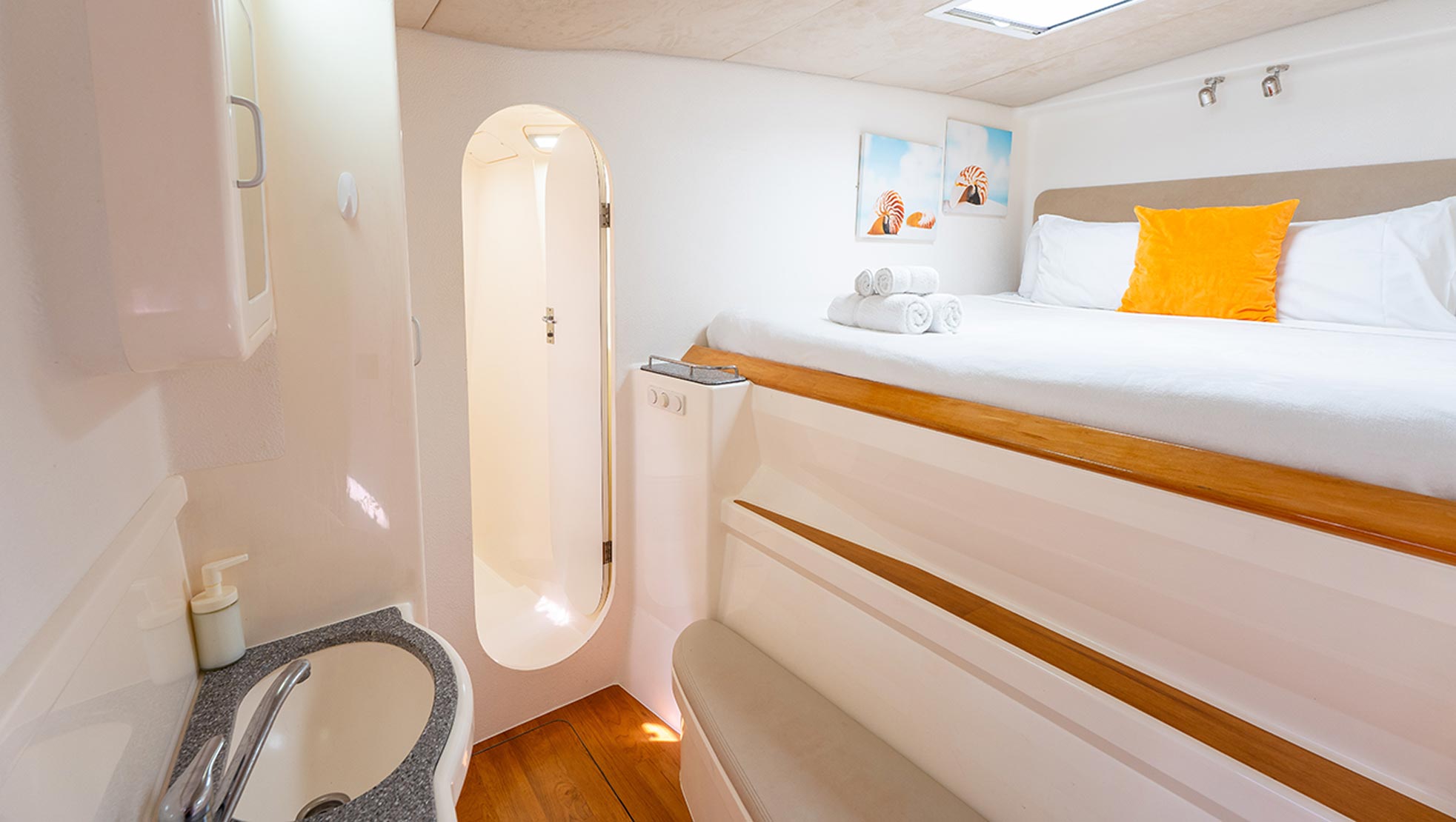

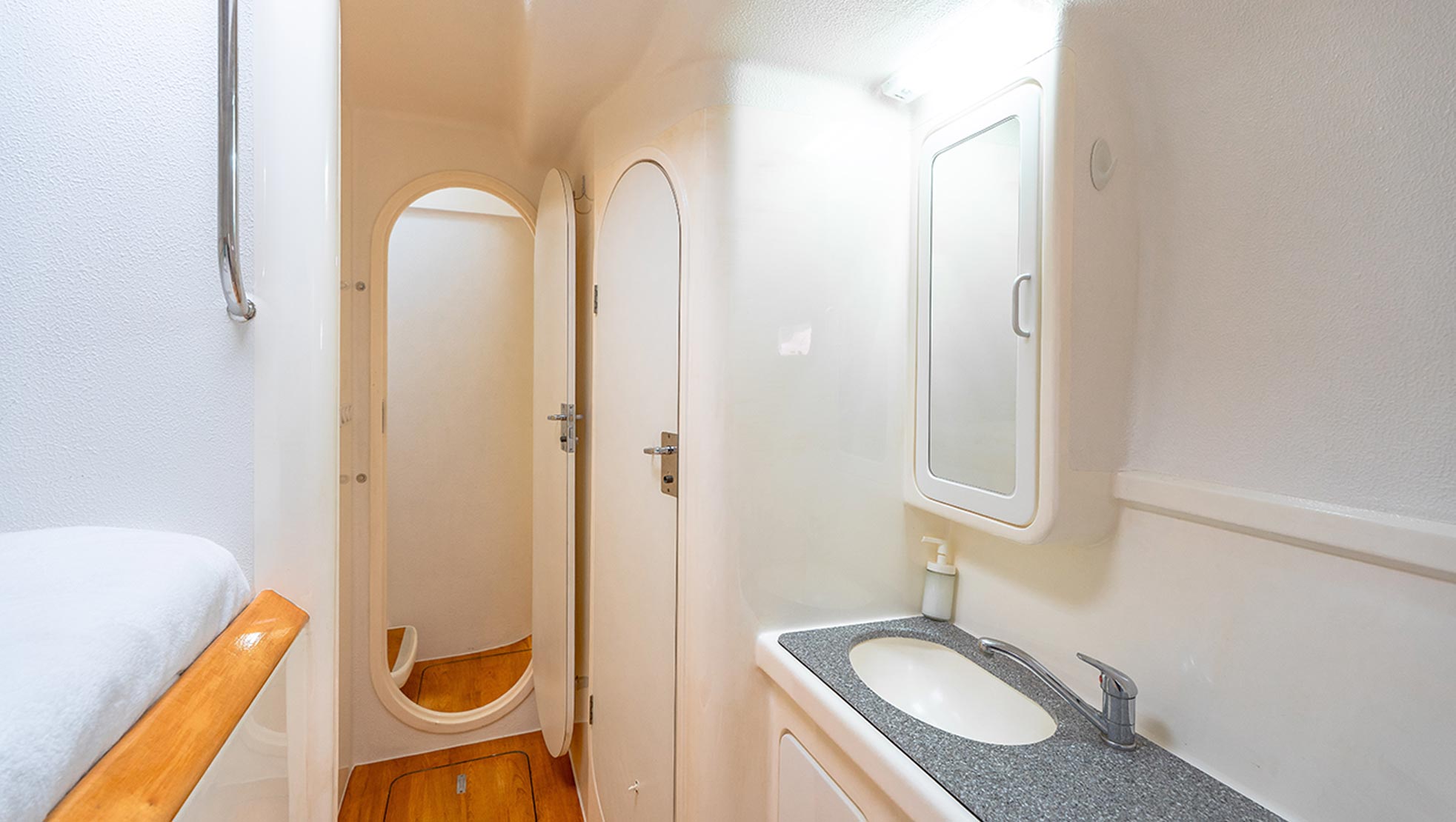

Forward & Aft Cabins
Fully air conditioned, separate self contained units with individual blowers
ALCANTARA ceiling liner
Faux leather upholstered headboard
Cabin and reading lights
Queen size bunks with split mattress
Hanging and storage cupboards

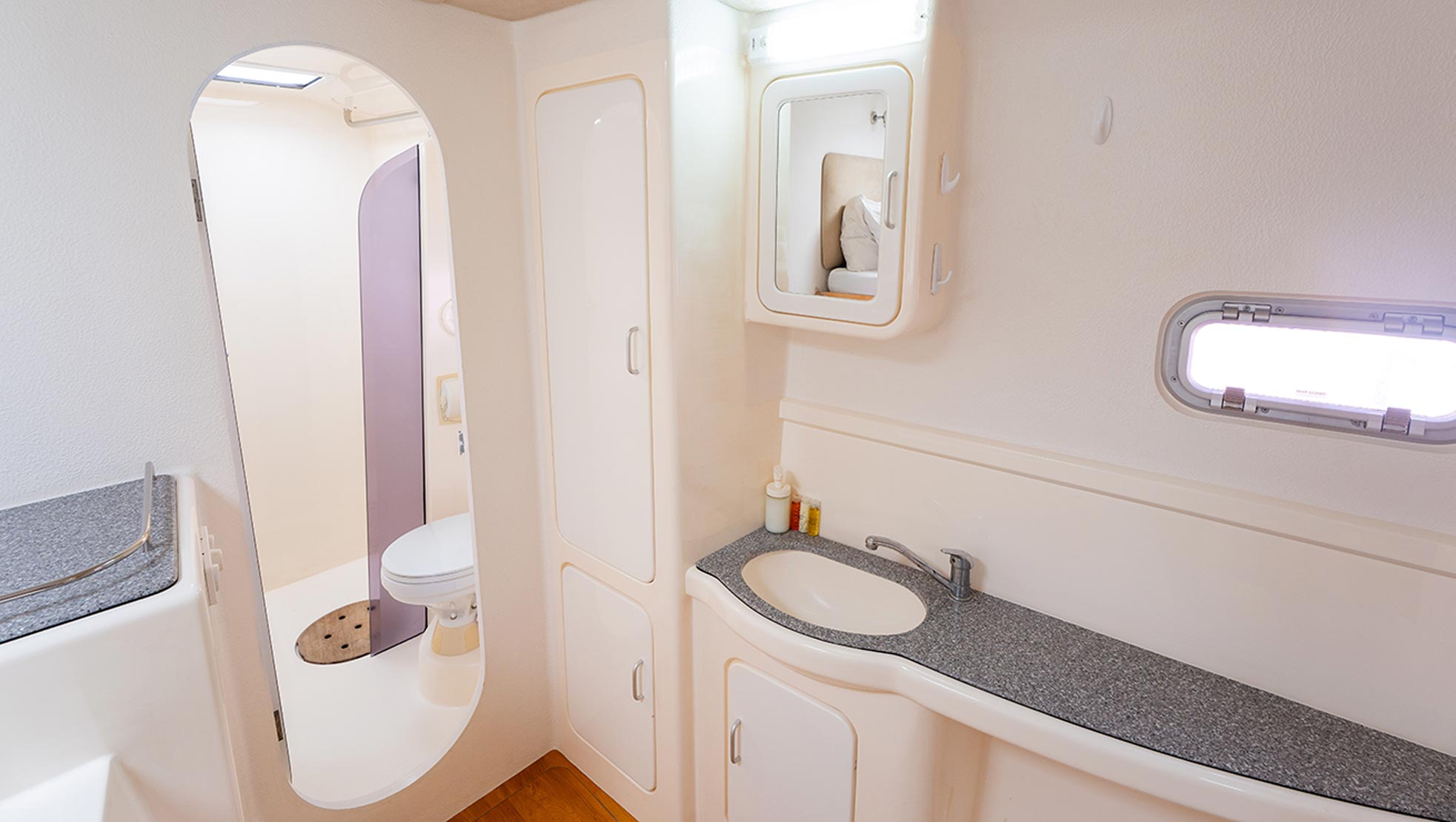

Electric fresh water flush marine toilet with macerator
Separate shower with pressurized hot and cold water
VOYAGE Gallery
Explore the elegance of the Secret Oasis - VOYAGE 580.
